Port Type: Hose
Pump Weight (approx): 7.75 LBS (3.52 KG)
Replaces Cummins Onan Pump p/n(s): A029U129, 132-0413, 132-0356, 132-0347, 132-0343
Replaces Sherwood Pump p/n(s): G1010
For Engine Model(s) MDKDP/R/V, MDKBP/R: MDKDP, MDKDR, MDKDV, MDKBP, MDKBR, QD 13.5/17/17.5/19/21.5 kW Generator

Port Size / Type: OD 41mm / Hose Ports
Drive Type: Bracket Mount
Pump Weight (approx): 2.5kg / 5.50 lbs
Pump Size (L x W x H,mm): 141 x 106 x 123
Replaces Mercury Mercruiser pump p/n: 897345016
Replaces Sherwood pump p/n: P1505, P-1505
Engine Models: QSD 4.2 / 270-350hp @ 3800, L6

Port Type: 1/2" Pipe
Pump Size (LxWxH): 144mm x 105mm x 94mm
Pump Weight (approx): 6.0 lbs (2.73 kgs)
Replaces Genuine Northern Lights Pump p/n: 25-12057
Replaces Jabsco Pump p/n: 30410-9001
Engine "Generator" Model(s): 8-20KW and under Series Generators

For ships over 50 meters as signal lights.

Patent: ZL 201721558792.X

Technical Specifications

Standards: GB/T 3028, MSC 253(8)

Operating Temp: -30℃ to 55℃

Power: 2 x 8W LED

Protection: IP66

Cable Entry: PG13.5

Port Size (Outside Diameter): 1 1/4" or 32mm
Port Type: Hose

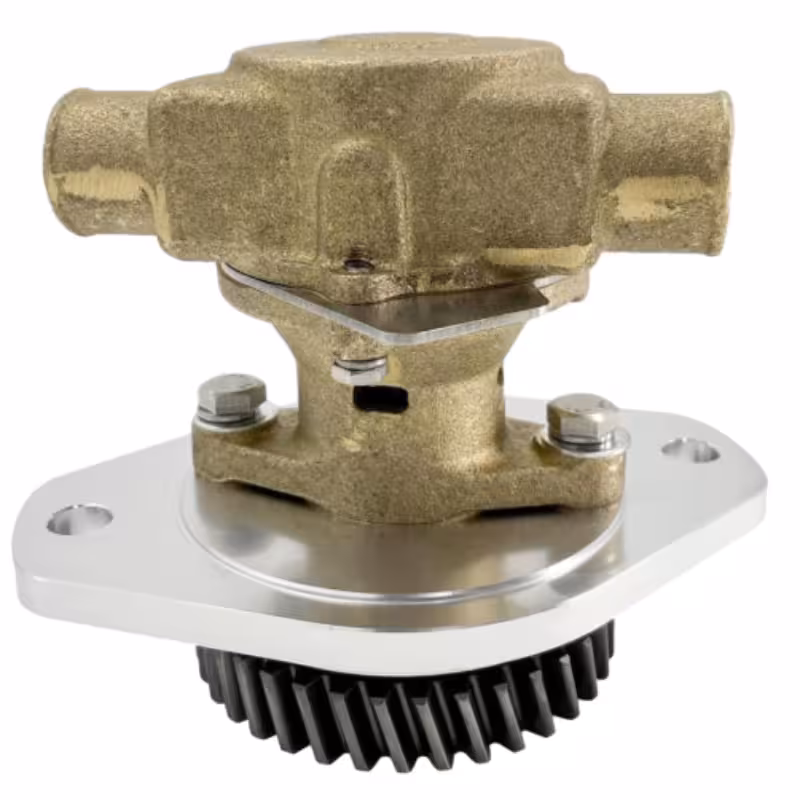

Replaces Genuine Cummins Pump p/n(s): 3907458, 3912019
Replaces Sherwood Pump p/n(s): M71, M70
For Engine Model(s): 4B3.9M, 4B3.9D(M), 4BT3.9M, 4BT3.9-D9(M), 4BTA3.9M, 4B5.9M, 6B5.9M, 6B5.9-D(M), 6BT5.9M, 6BT5.9-D(M)
Pump Weight (approx): 10 LBS (4.55 KG)

Port Type: 1/2" Pipe
Pump Size (LxWxH): 137mm x 105mm x 94mm
Pump Weight (approx): 6.0 lbs (2.73 kgs)
Replaces Genuine Northern Lights Pump p/n: 25-15405
Engine "Generator" Model(s): 32KW and under Series Generators

• M30C, M33C, M33CW, M864K, M864W, M864W3, L984, M984K, M984W, ML984, M964

Port Type: 1/2" Hose
Pump Size (LxWxH): 110mm x 117mm x 81mm
Pump Weight (approx): 3.30 lbs (1.50 kgs)
Replaces Genuine Northern Lights Pump p/n(s): 25-12007 (*Replaces Old Part No(s): NL 145016820, NL 25-18305)
Replaces Jabsco Pump p/n: 30415-7001
Engine "Generator" Model(s): 6KW and under Series Generators

• M643, M643K, M643M, NL643, M673, M673D, M673L, M673L2, M673L3, M673LD2, M673LD3, NL673, NL673L, NL673L2, NL673L3

Port Size (Inside Diameter): 1/2" Hose
Port Size (Outside Diameter): Approx 3/4" Hose
Pump Size (LxWxH): 91mm x 114mm x 76mm
Pump Weight (approx): 4.0 lbs (1.82 kgs)
Replaces Genuine Yanmar Water Pump p/n(s): 128397-42500, 128990-42500
Replaces Johnson Pump p/n(s): 10-24509-01, 10-13337-01, F4B-903
Engine Model(s):

• 2GMF, 3GMF, 2YM, 3YM

Port Size / Type: OD 40mm / Hose Ports
Drive Type: Bracket Mount Pulley Drive
Pump Weight (approx): 2.4kg / 5.30 lbs
Pump Size (L x W x H,mm): 128.5 x 137 x 95
Replaces Mercury Mercruiser pump p/n: 879312023, 854179001
Replaces Sherwood pump p/n: P1016
Engine Models:

• QSD 2.0L / 155-170hp #4000, L4
• QSD 2.8L / 220hp @3800, L4

Port Type: 3/8" NPT
Pump Weight (approx): 5.25 LBS (2.40 KG)
Replaces Cummins Onan Pump p/n(s): 132-0430, 132-0395
Replaces Sherwood Pump p/n(s): G8002
For Engine Model(s) MDKBH/J/W: MDKBH, MDKBJ, MDKBW, QD 4/5, 6/7.5, 8kW Generator
Parts Internally Compatible to Genuine: NO (Changes made for Better Quality & Performance)
